IEncoderAdapter Class Reference

Description

A lightweight adapter abstract class for encoders.

#include <IEncoderAdapter.h>

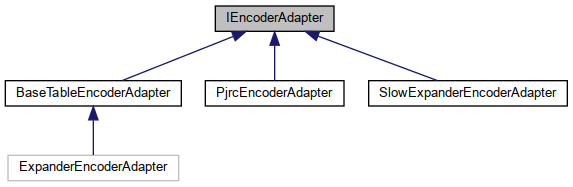

Inheritance diagram for IEncoderAdapter:

Public Member Functions
virtual	~IEncoderAdapter ()=default
	Destructor to ensure predictable behavious if derived classes are destroyed.
virtual bool	begin (void)=0
	For compatibility with the Arduino library convention. More...
virtual int32_t	getPosition (void)=0
	Get the current position as reported by the encoder class. More...
virtual void	setPosition (int32_t pos)=0
	Set the a new position of the encoder. For some libraries this may only allow it to be set to 0. More...

Member Function Documentation

begin()

virtual bool IEncoderAdapter::begin ( void  )

pure virtual

For compatibility with the Arduino library convention.

Must be implemented (but can be empty) as some libraries require it. Can return a boolean to indicate if initialisation has failed.

Returns

true The initialisation was successful.

false The initialisation was failed.

Implemented in ExpanderEncoderAdapter, SlowExpanderEncoderAdapter, and PjrcEncoderAdapter.

getPosition()

virtual int32_t IEncoderAdapter::getPosition ( void  )

pure virtual

Get the current position as reported by the encoder class.

Returns

int32_t The position. May be positive or negative.

Implemented in BaseTableEncoderAdapter, SlowExpanderEncoderAdapter, and PjrcEncoderAdapter.

setPosition()

virtual void IEncoderAdapter::setPosition ( int32_t  pos )

pure virtual

Set the a new position of the encoder. For some libraries this may only allow it to be set to 0.

Parameters

pos	The desired new position.

Implemented in BaseTableEncoderAdapter, PjrcEncoderAdapter, and SlowExpanderEncoderAdapter.

---

The documentation for this class was generated from the following file:

• src/EncoderAdapter/IEncoderAdapter.h
