TouchScreenAdapter Class Reference

Description

A lightweight abstract Abstract class for touch screen panels.

#include <TouchScreenAdapter.h>

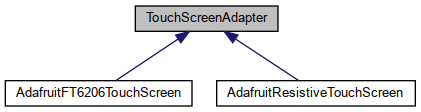

Inheritance diagram for TouchScreenAdapter:

Classes
struct	TouchPoint
	A consistent struct containing points X & Y plus Z as pressure. More...

Public Member Functions
void	setDisplayWidth (uint16_t widthPx)
	Set the native (non-rotated) display width (X) in pixels. More...
void	setDisplayHeight (uint16_t heightPx)
	Set the native (non-rotated) display height (Y) in pixels. More...
virtual TouchScreenAdapter::TouchPoint	getTouchPoint (void)=0
	Get the TouchPoint object. More...
virtual TouchScreenAdapter::TouchPoint	getTouchPointRaw (void)=0
	Get a TouchPoint struct containing raw values from the underlying library. More...
virtual bool	begin (void)=0
	For compatibility with the Arduino library convention. More...
void	setRotation (uint8_t r)
	Set the rotation touch screen. More...

Protected Attributes
uint8_t	rotation = 0
	The current rotation of the touch panel. Default is 0 (native orientation).
uint16_t	DISPLAY_WIDTH = 240
	The non-rotated width of the display in pixels.
uint16_t	DISPLAY_HEIGHT = 320
	The non-rotated height of the display in pixels.
uint16_t	displayWidth = DISPLAY_WIDTH
	The (optionally rotated) width of the display in pixels.
uint16_t	displayHeight = DISPLAY_HEIGHT
	The (optionally rotated) height of the display in pixels.

Member Function Documentation

begin()

virtual bool TouchScreenAdapter::begin ( void  )

pure virtual

For compatibility with the Arduino library convention.

Must be implemented (but can be empty) as some touch libraries require it. Can return a boolean to idicate if initialisation has failed.

Returns

true The initialisation was successful.

false The initialisation was failed.

Implemented in AdafruitFT6206TouchScreen, and AdafruitResistiveTouchScreen.

getTouchPoint()

virtual TouchScreenAdapter::TouchPoint TouchScreenAdapter::getTouchPoint ( void  )

pure virtual

Get the TouchPoint object.

Returns a TouchPoint. Display are x & y populated (ie non-zero) only if touched.

Returns

TouchPoint

Implemented in AdafruitFT6206TouchScreen, and AdafruitResistiveTouchScreen.

getTouchPointRaw()

virtual TouchScreenAdapter::TouchPoint TouchScreenAdapter::getTouchPointRaw ( void  )

pure virtual

Get a TouchPoint struct containing raw values from the underlying library.

Returns a TouchPoint with raw x, y & z populated from the underlying library. For most panels this will usually return the same values as getTouchPoint() but can be useful for tuning resistive panels. Note: This will return a populated TouchPoint irrespective of the Z value. Generally used for setup or debugging.

Returns

TouchPoint

Implemented in AdafruitFT6206TouchScreen, and AdafruitResistiveTouchScreen.

setDisplayHeight()

void TouchScreenAdapter::setDisplayHeight ( uint16_t  heightPx )

inline

Set the native (non-rotated) display height (Y) in pixels.

Is set to 320 by default. For some adapters (resistive) this must be set to the native height of your display. For adapters that report pixel position directly, this is only used to reverse X or Y.

Parameters

heightPx

Width in pixels

setDisplayWidth()

void TouchScreenAdapter::setDisplayWidth ( uint16_t  widthPx )

inline

Set the native (non-rotated) display width (X) in pixels.

Is set to 240 by default. For some adapters (resistive) this must be set to the native width of your display. For adapters that report pixel position directly, this is only reqired if X and/or Y need to be reversed. (Ahem, FT6206).

Parameters

widthPx

Width in pixels

setRotation()

void TouchScreenAdapter::setRotation ( uint8_t  r )

inline

Set the rotation touch screen.

This should be called at the same time the display rotation is set.

Parameters

r	Follows the convention of: 0 = native orientation 1 = 90degrees from native 2 = 180degrees from native 3 = 270degrees from native

---

The documentation for this class was generated from the following file:

• src/TouchScreenAdapter.h
